CATAMARAN

WiderCat 92

LENGTH (L.O.A.):

28,04 m (92′ 0″)

BEAM:

12,00 m (39′ 4″)

MAXIMUM SPEED:

12 kn

ACCOMMODATION

8 guests + 4 or 10 guests +4

The
Solar Flare


Let yourself be dazzled by the future. WiderCat 92 breaks down technological boundaries and the barriers between outdoor and indoor spaces, reflecting a design concept where aesthetics, functionality, elegance and innovation coexist.


A 28-metre catamaran with limitless space and comfort. A remarkable combination of hybrid technology and solar energy.

Future proof design


WiderCat 92 has no limits. It breaks down technological boundaries and the barriers between outdoor and indoor spaces, reflecting a design concept where aesthetics, functionality, elegance and innovation coexist.

Features

Propulsion System

Discover more

Beach Club

Discover more

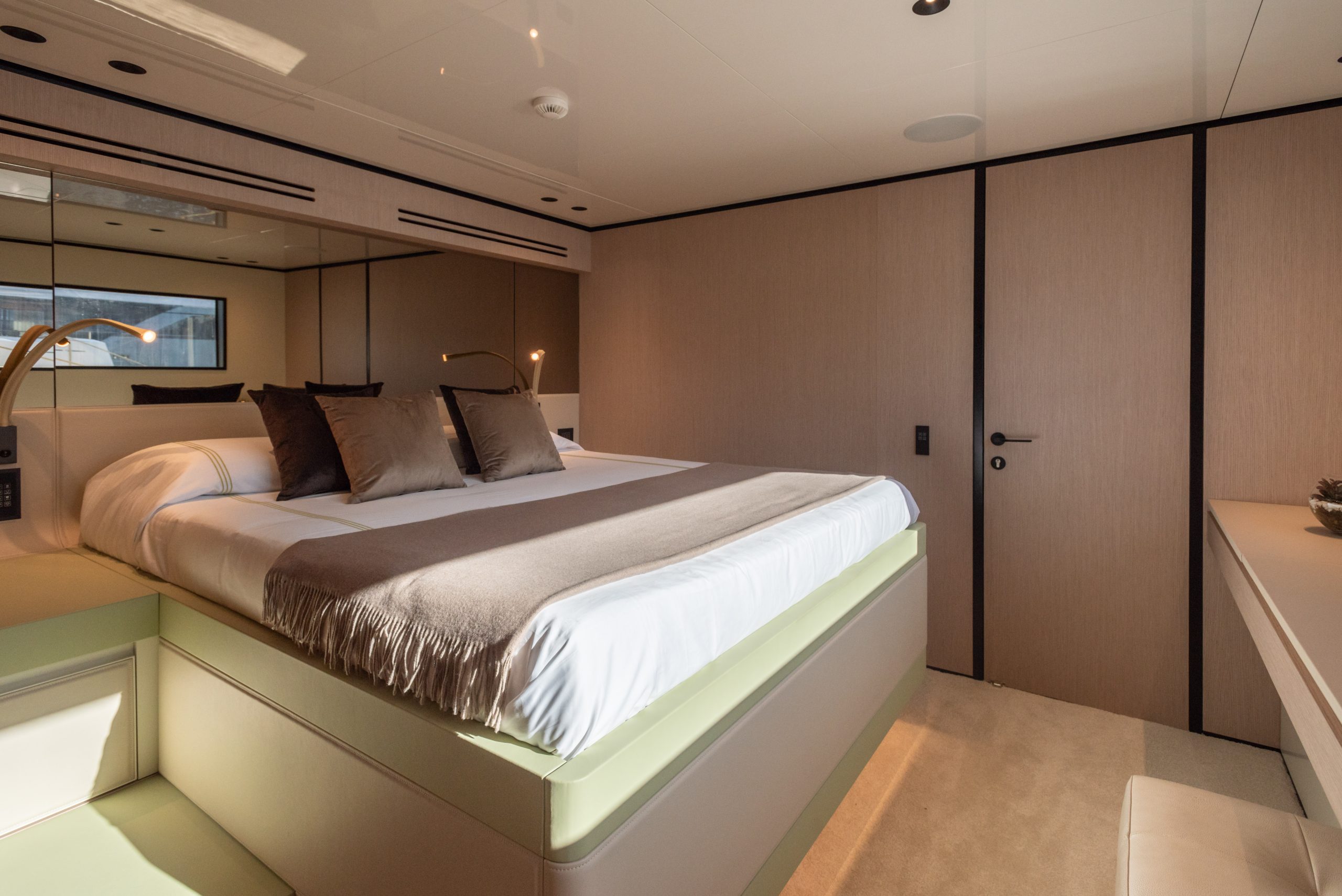

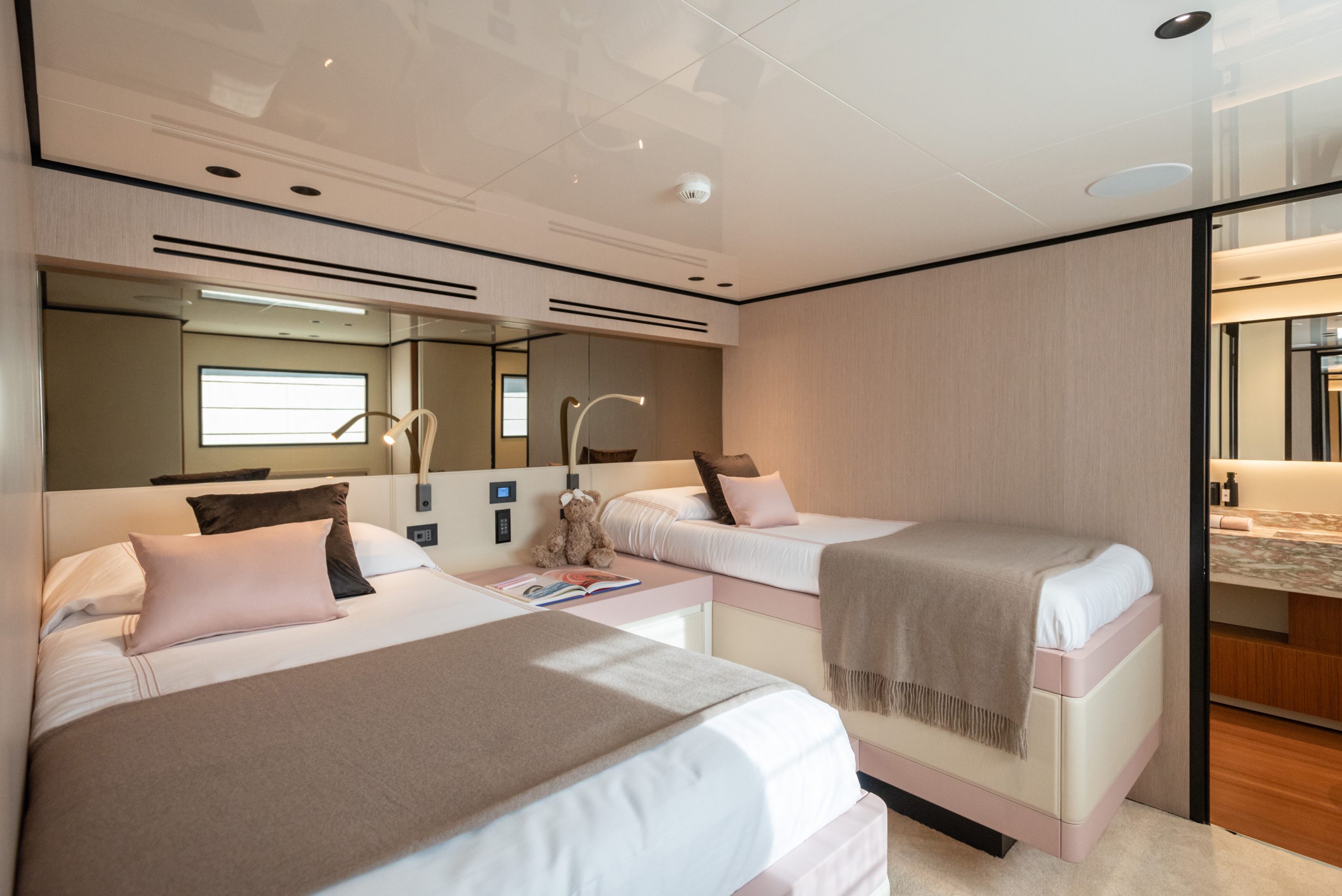

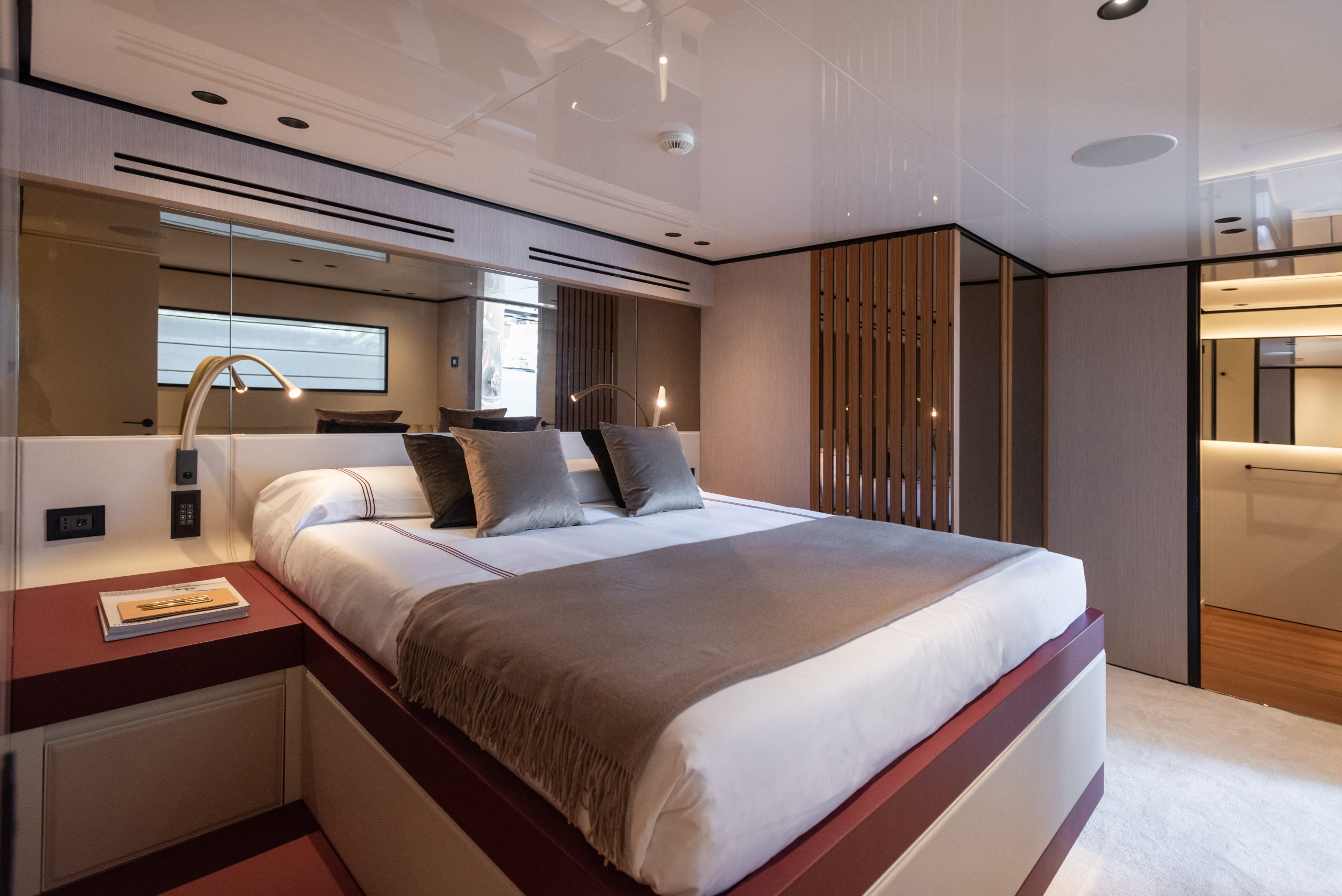

Cabins

Discover more

Entertainment

Discover more

Anchoring without an anchor

Equipped with Dynamic Positioning, WiderCat 92 uses an electronic satellite-controlled system to automatically maintain its position and heading.
The WiderCat 92 electronic anchor system heralds a new era of environmental consciousness, sitting at anchor in Zero Emission Mode and preserving marine ecosystems.​

Plans

Do you want to know more about the WiderCat 92?

Tech specs

GENERAL

  • BUILDER: Wider Srl
  • LENGHT (L.O.A.): 28,04 m (92′ 0″)
  • WATERLINE LENGTH: 25,49 m (83′ 8”)
  • BEAM: 11,98 m (39′ 4″)
  • DRAFT (FULL DISPLACEMENT): 1,90 m (6′ 3″)
  • HULL AND SUPERSTRUCTURE: GRP + CRP
  • DISPLACEMENT FULL LOAD: 150 tons
  • GROSS TONNAGE: 250 GT
  • DESIGNER: Luca Dini Design, Centro Stile Wider
  • INTERIOR DESIGNER: Luca Dini Design, Centro Stile Wider
  • NAVAL ARCHITECT: Wider Engineering & MDS Engineering
  • CERTIFICATION: CE Category A
  • LOCATION: Fano (Italy)

  • FUEL: 8.000 L – 2.113 US gal
  • FRESH WATER: 2.000 L – 528 US gal

An eShaft with twin screw props with Wider Serial Hybrid system allows, in trial condition, a range up to 1.700 nm at 6 knots

  • MAXIMUM SPEED (ELECTRIC BOOST): 12 kn
  • CRUISING SPEED: 10 kn / RANGE: 600 nm approx.
  • ECOLOGICAL SPEED: 8 kn / RANGE: 1000 nm approx.
  • ZEM: up to 6 kn / RANGE nm: 4 hours at 6kn
  • AT ANCHOR: RANGE: 15 hours approx.

  • ENGINES: 2x Danfoss e-Motor 481 kW
  • GEARBOX: 2x Twin Disk MGX-5136SC
  • GENSET: 2x FPT N67 570 EVO 357kW
  • BATTERY PACK: 30 x Wider LiFePO4 – Total NET Capacity of 360 kW/h
  • AT ANCHOR: 15 h

  • Up to 10 Guests + 4 Crew Members
